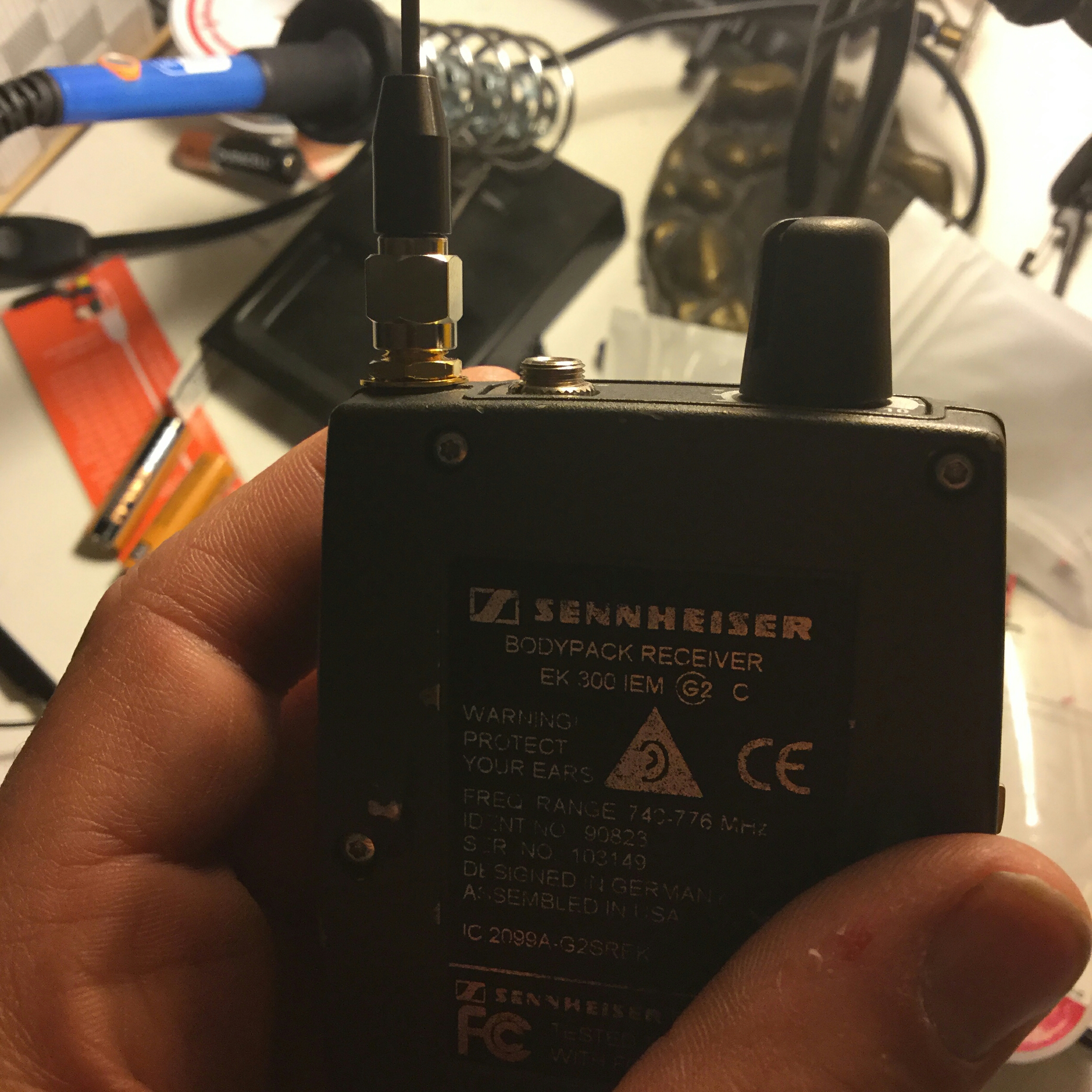

Adding a SMA port to a Sennheiser G2/G3 is one of the most lusted after mod’s in the world of TV Film audio.The Sennheiser G2/G3 EW100/EW300 features a fixed VERY flexible antenna that goes limp after a few months of use. This antenna also makes them a pain to store in cases between uses.

Lets get one thing out of the way, adding a SMA antenna does not make them Lectrosonics; it will not transmit magically across a football stadium; the output is still 30mw. The SMA mod offers a lot of benefits to the G3 though. Once modded the Sennheiser units are more stable with less RF drop outs, storage between uses is easier. You can now use a MultiRF with a “Shark Fin” Log Periodic directional antenna, adding a booster to to increase the RX’s signal. It also just looks cooler!

Supplies:

Sennheiser G2/3 body pack unit

SMA Female  connector

Dremel rotatory saw

Vice clamps

1/8″ Heat shrink

50 ohm solid coax wire ( OR tiny gauge steel wire)

Soldering  iron

Tweezers

Hex Key set

Remote Audio SMA stiff antenna

STEP 1:

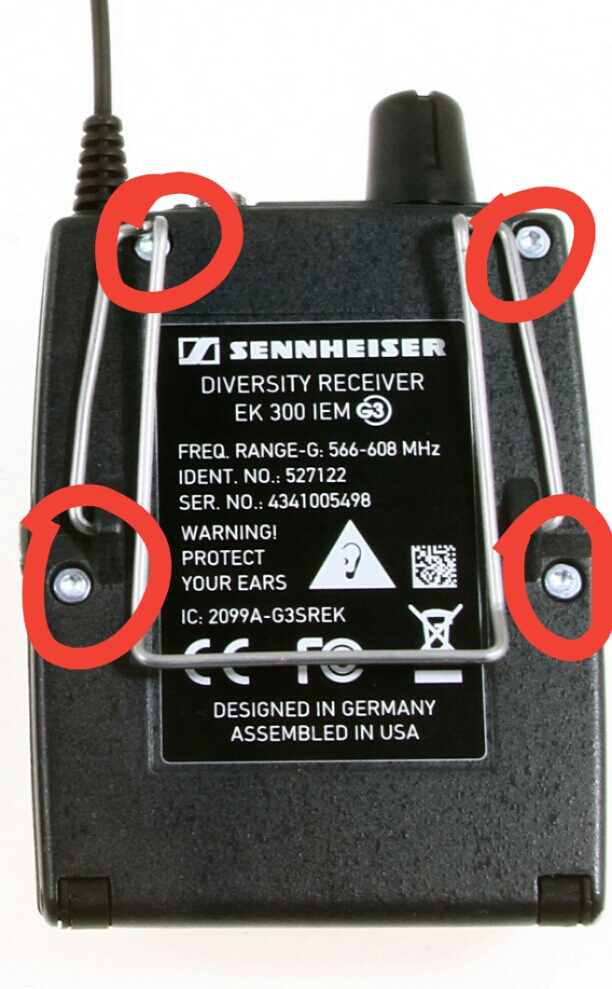

Open the unit by removing the battery door and  flipping it on it’s face and unscrewing the 4 Hex screws on the back of the unit.

STEP 2:

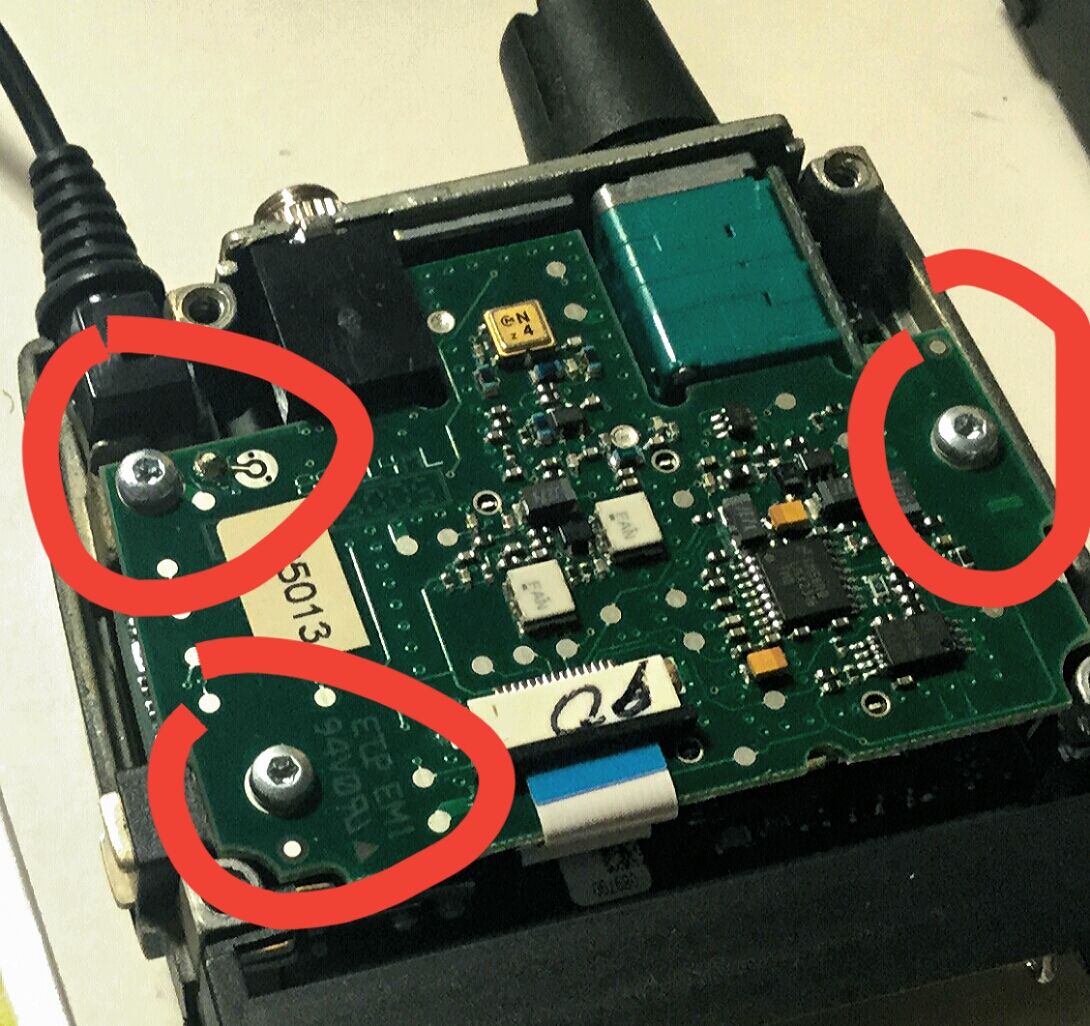

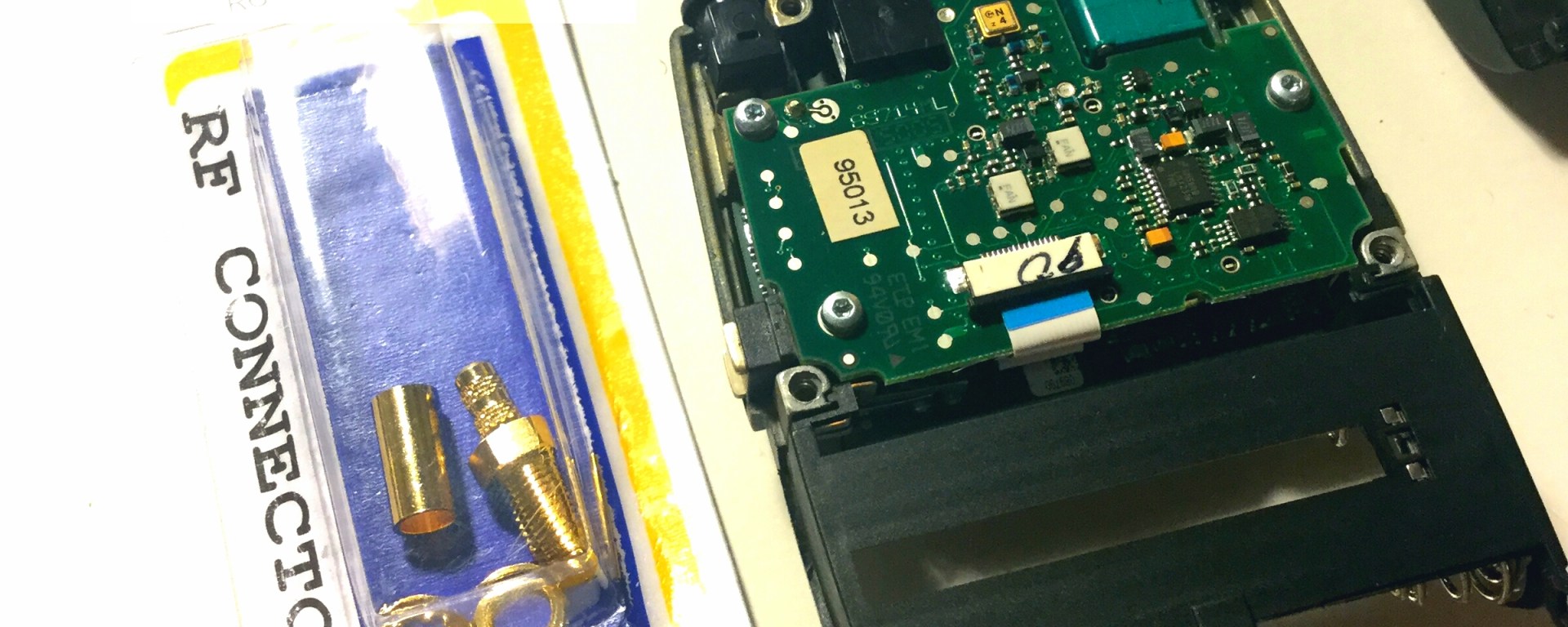

Unscrew the 3 screws holding the transmitting PCB in place. Note that the two lower screws have more threads and should be separated so they go back in the right place. The top screw matches the threading of the 4 screws that held the unit together.

STEP 3:

Don’t worry about the ribbon cable. Use your tweezers to grab the old pin holding the antenna to the PCB. Use your soldering iron to melt the solder; tug on the old antenna while the solder is melted and it will pop right out.

STEP 4:

Now let’s concentrate on modding the SMA connector to fit in the G2/3 antenna slot. Natively it is too wide so two sides need to be grinded off using the Dremel mounted with the cutting disk. Use the vice clamp to hold the unit by the “cable side” of the connector like in the photo below. DO NOT CLAMP OR GRIND ON THE SMA THREADS!!!! Clamping onto the threads will destroy them.

STEP 5:

Now hold it by the newly grinder flat sides and cut off he cable side of he connector so it looks like this. AGAIN do not clamp onto he threaded SMA side.

The flatter you can make this hole, the easier it will be to force your 50 Ohm cable through the hole.

STEP 6:

Solder the tip of your 50 Ohm Coax cable to the SMA pin. Slide your 1/8″ heat shrink up to the end of the pin. Use the photo for reference, your pin may be different depending on which connector you buy and which ype of SMA you plan on going too.

STEP 7:

Shove it in the back of the hole on the SMA connector. It should look identical to the photo below. You want to make sure no metal from the 50 Ohm cable is touching the outside housing of the connector.  This is where extra heat shrink may be needed.

STEP 8:

Now solder the connector to he hole here the old antenna lived on he PCB.

STEP 9:

Replace all the screws on the PCB, keeping the finer headed screws back into the bottom and the course screws into the top mounting hole. now replace the four course hex screws into the back of he unit.

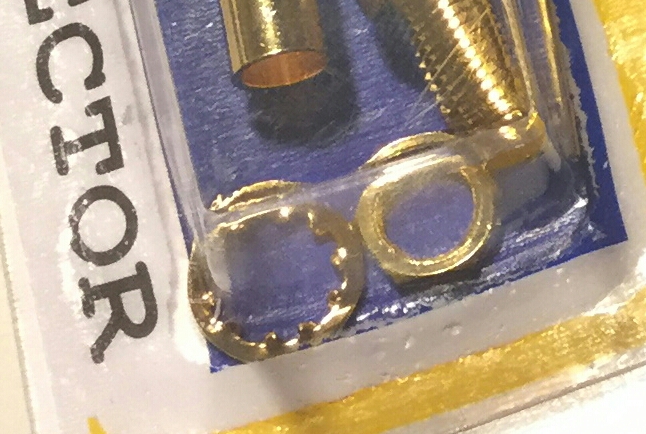

Locate the lock washer and the nut that screws down the SMA threads.

Screw it on. Use the vice clamps to really add the torque needed to get the lock washer to bite into the G3 housing. You are now done!

Now follow the instructions on the Remote Audio SMA antenna packaging so you know where to cut the antenna to match your frequency block.
